Core Tech
——
Double cold trap system
——
Ultilizing a medusa-like double cold trap system specially developed for ODS and F-gases analysis, the target compounds can be further separated and purified from the interfering components, so as to ensure the high sensitivity and reproducibility.

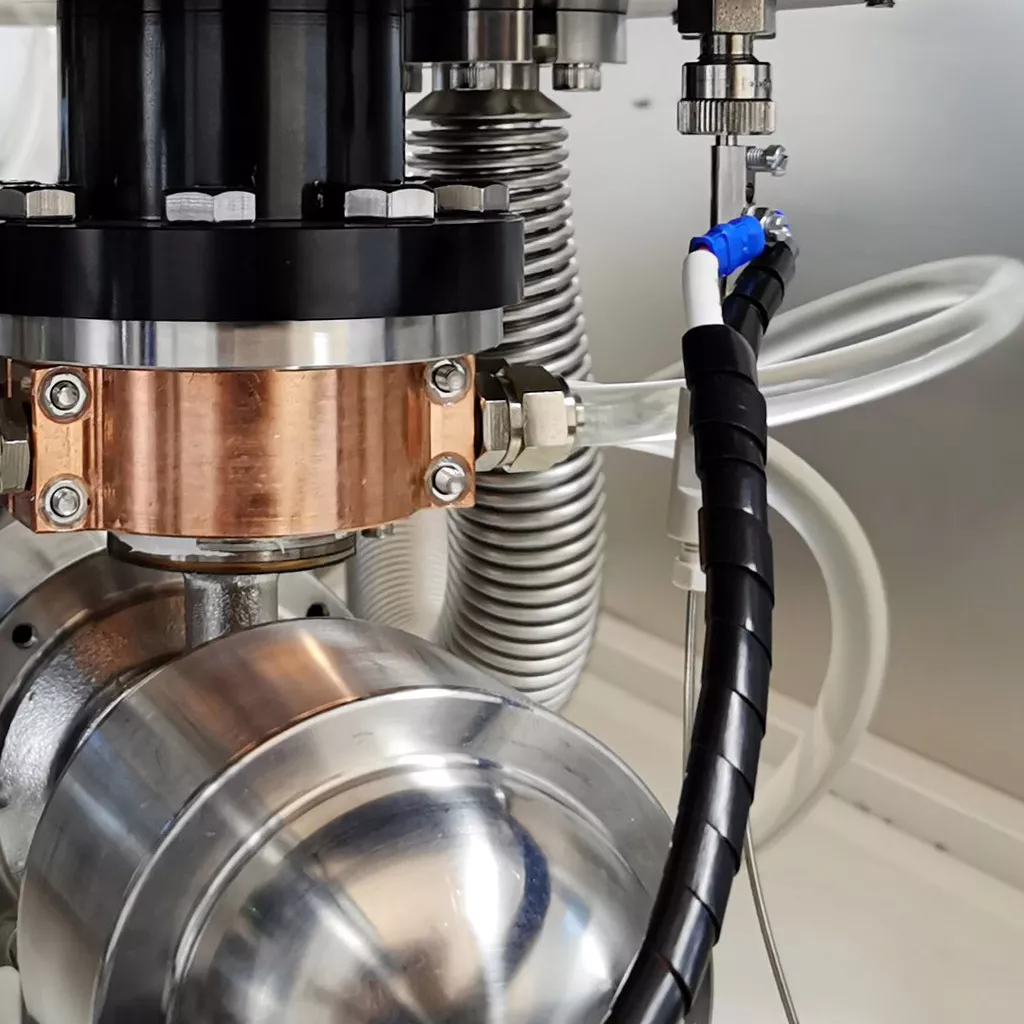

Ultra low cooling system
——
The system uses a state-of-the-art cryocooler system, with a minimum temperature of - 200 ℃, which can condense most halogen-containing gas components with very low boiling point, including NF3 and CF4.

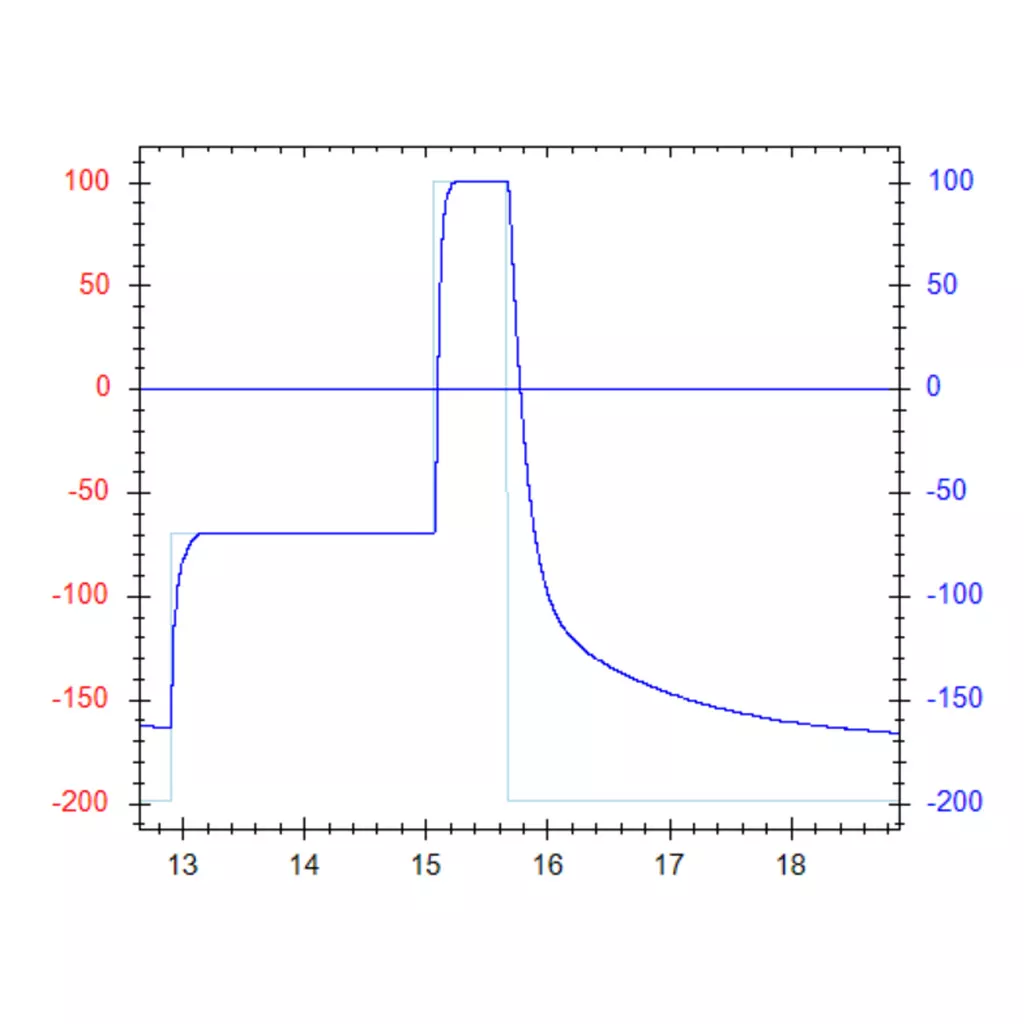

Accurate temperature control
——
Specially developed temperature control system can realize accurate and rapid temperature control of the traps from - 150 ℃ to 100 ℃ with accuracy better than 1 ℃.

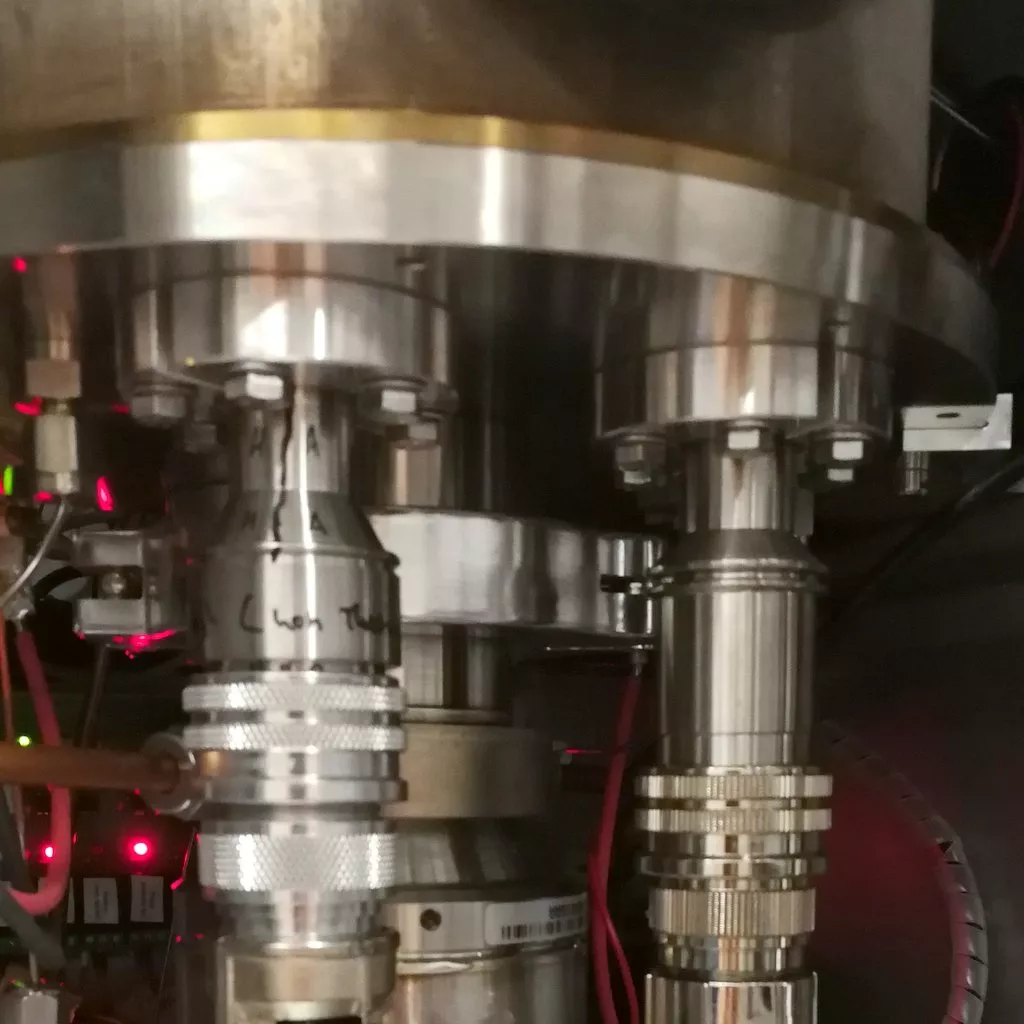

Customized mass spectrometry
——
The mass spectrometry is specially development for halogenated hydrocarbon monitoring. Customized hardware and software interfaces to ensure the highest level of accuracy and stability.

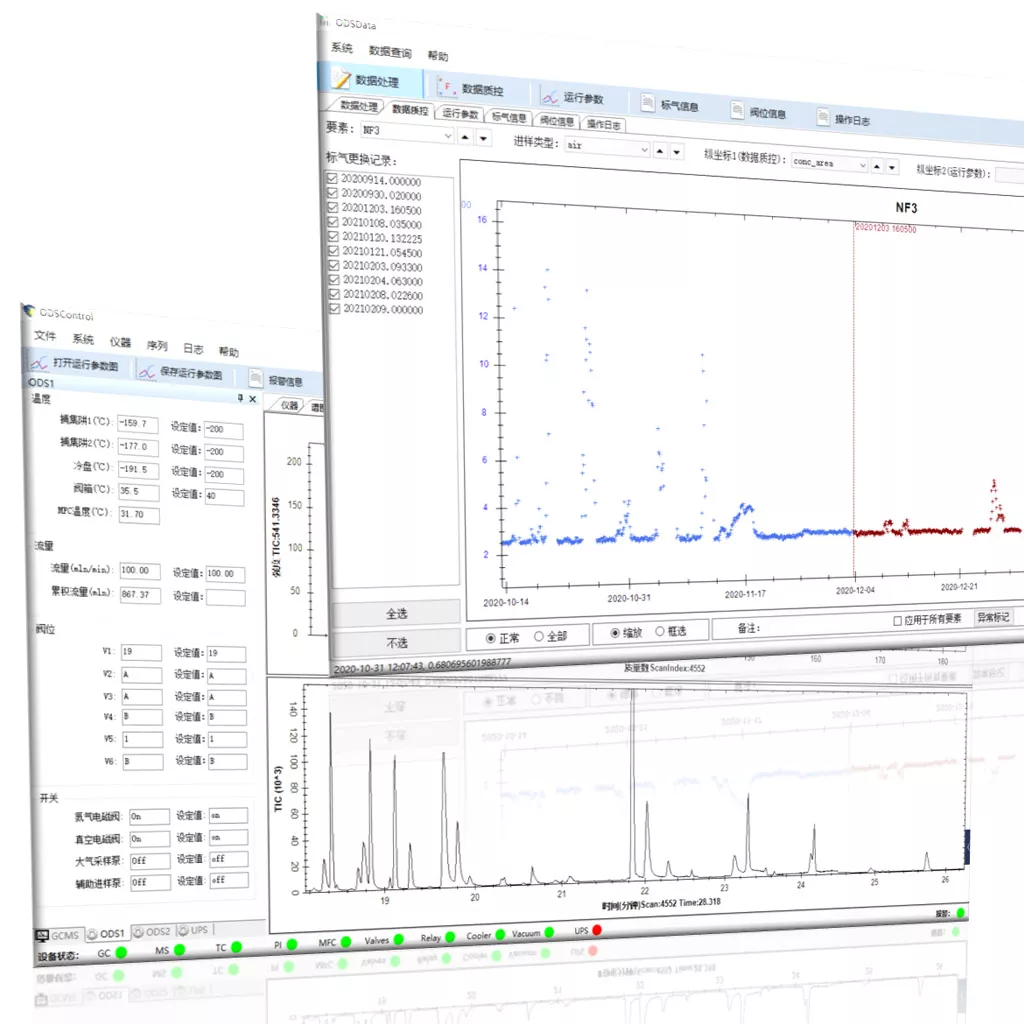

Fully automated software platform
——
The control software and data processing software are specially developed for automatic ODS and F-gases monitoring, which bring the best reliability and efficiency.
