Dual-mode pressurized air sampler

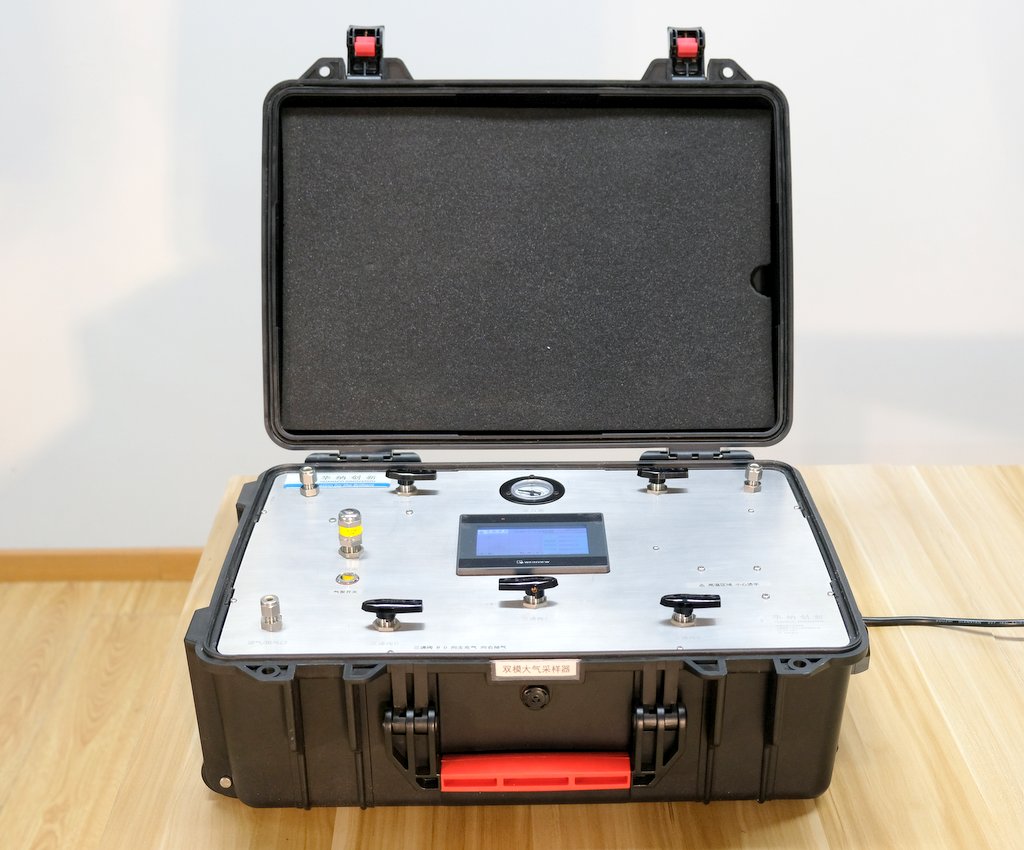

HN-ASA1 dual-mode pressurized air sampler is used for air sampling of canister samples.


The sampler has a built-in air pump and a manual valve switching system. By switching the two 2/3-way valves, the operator can perform cleaning or sampling operations to 2 air canisters.


HN-ASA1 offers optional flow control module, which allow sampling under a controlled flowrate.


The sampler box adopts a tough and portable design, which is easy to carry. All parts are reliable and durable.


Parameters:

  • Air inlet: Swagelok® 1/4-inch bulkhead tube fitting

  • Canister connection: Swagelok® 1/4-inch bulkhead tube fitting x2

  • Sampling pressure: 30 psig

  • Box: high strength ABS

  • Dimensions: 546 mm (L) x 333 mm (W) x 142 mm (H)

  • Weight: about 11 kg

  • Power supply: 220V 50Hz

  • Power consumption: 120W max

  • Optional flow control module:

    Flow control range: 10-200 ml / min

    Flow control accuracy: ±1.0% F.S
